--[ Challenge Description ]--
-- text --
I made a little Arduino program that displays a flag on a [14-segment display](https://www.adafruit.com/product/2157)! I captured the I2C data sent to the screen using my Saleae logic analyzer... can you decipher it and extract the flag?
[alpha_REDACTED.ino] [flag.sal]
────────────────────────────────────────────────────────────────────────────────
--[ Provided Materials ]--
- Repository folder https://github.com/BYU-CSA/BYUCTF-2025/tree/main/misc/alpha
- misc/alpha/README.md
https://github.com/BYU-CSA/BYUCTF-2025/blob/main/misc/alpha/README.md
- misc/alpha/flag.sal
https://github.com/BYU-CSA/BYUCTF-2025/blob/main/misc/alpha/flag.sal
- misc/alpha/writeup/bytes1.png
https://github.com/BYU-CSA/BYUCTF-2025/blob/main/misc/alpha/writeup/bytes1.png
- misc/alpha/writeup/bytes2.png
https://github.com/BYU-CSA/BYUCTF-2025/blob/main/misc/alpha/writeup/bytes2.png
- misc/alpha/writeup/sal.png
https://github.com/BYU-CSA/BYUCTF-2025/blob/main/misc/alpha/writeup/sal.png
- misc/alpha/writeup/alpha.ino
https://github.com/BYU-CSA/BYUCTF-2025/blob/main/misc/alpha/writeup/alpha.ino
- misc/alpha/writeup/solve.py
https://github.com/BYU-CSA/BYUCTF-2025/blob/main/misc/alpha/writeup/solve.py
────────────────────────────────────────────────────────────────────────────────
--[ Recon / Initial Analysis ]--
This page imports the BYUCTF 2025 source material for the Miscellaneous
challenge Alpha. The prompt is kept separate from the solve notes, and upstream
artifacts are linked so the challenge can be replayed from the original
repository.
────────────────────────────────────────────────────────────────────────────────
--[ Vulnerability / Observation ]--
The useful observation comes from the imported solve notes below. I kept the
original technical path intact while normalizing the page metadata, challenge
grouping, and author attribution for the Volume 2 writeup archive.
────────────────────────────────────────────────────────────────────────────────
--[ Exploitation / Solution ]--
Source: misc/alpha/README.md
https://github.com/BYU-CSA/BYUCTF-2025/blob/main/misc/alpha/README.md
I2C is a hardware data transfer protocol. There are two important signals: SDA
(Serial Data Line) transfers data while SCL (Serial Clock Line) serves as the
clock to synchronize communication.

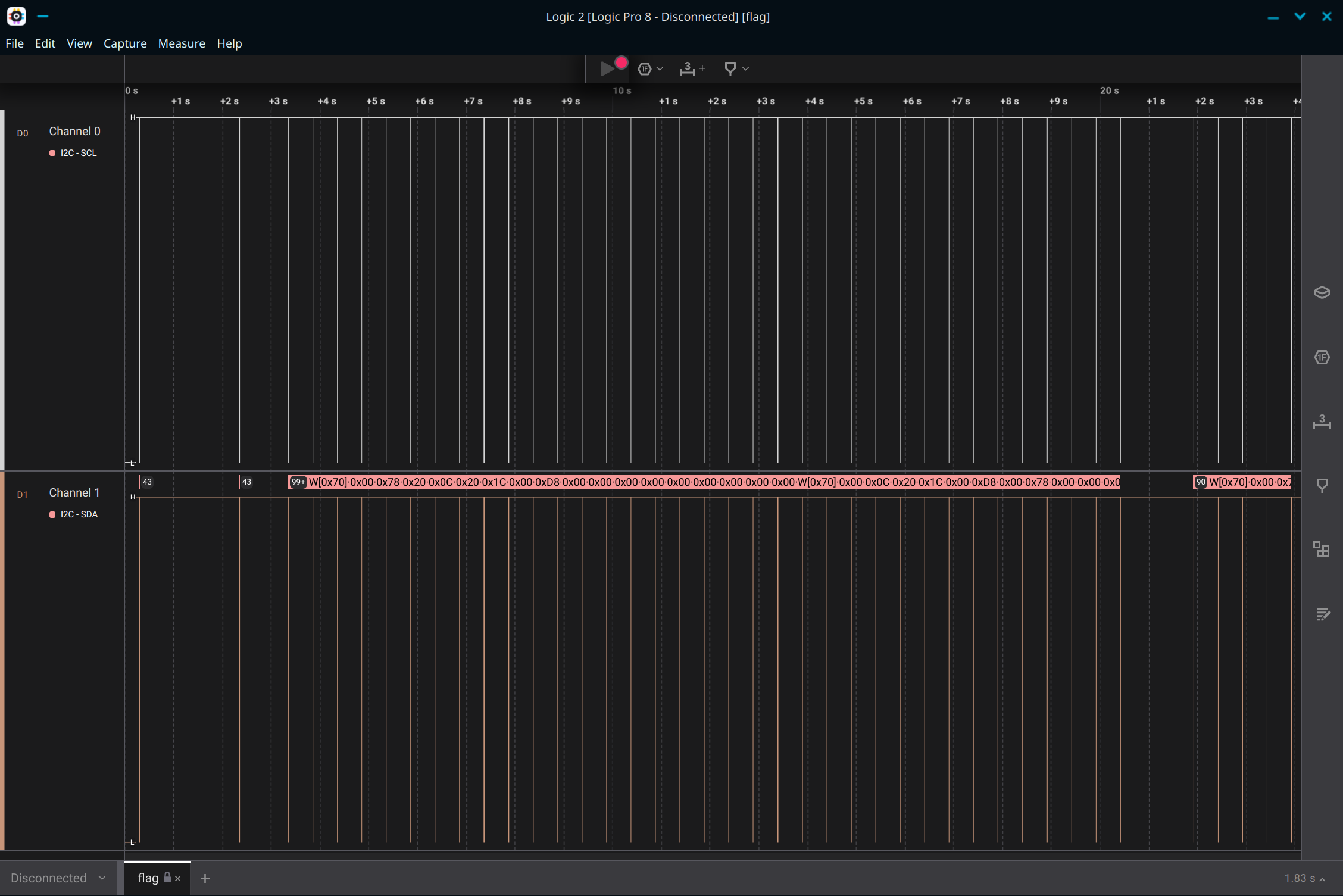

The .sal file is a data capture from the logic analyzer that can be opened using
the Logic 2 https://www.saleae.com/pages/downloads software. Doing this will
show you the SCL and SDA data:

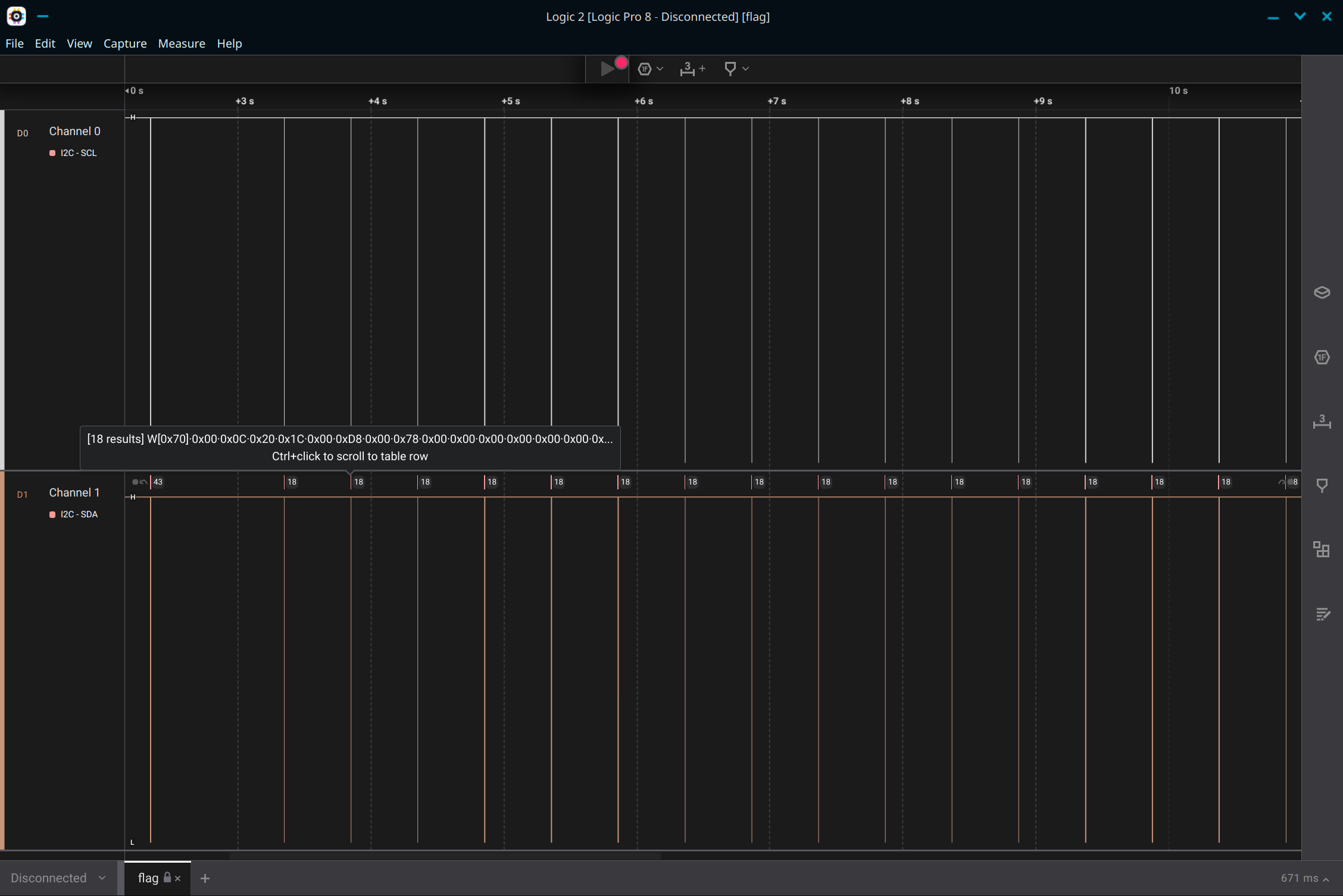

Each of the vertical "lines" on the SDA channel is a stream of data being sent
to the screen (if you zoom in, you'll see that it's actually the signal going up

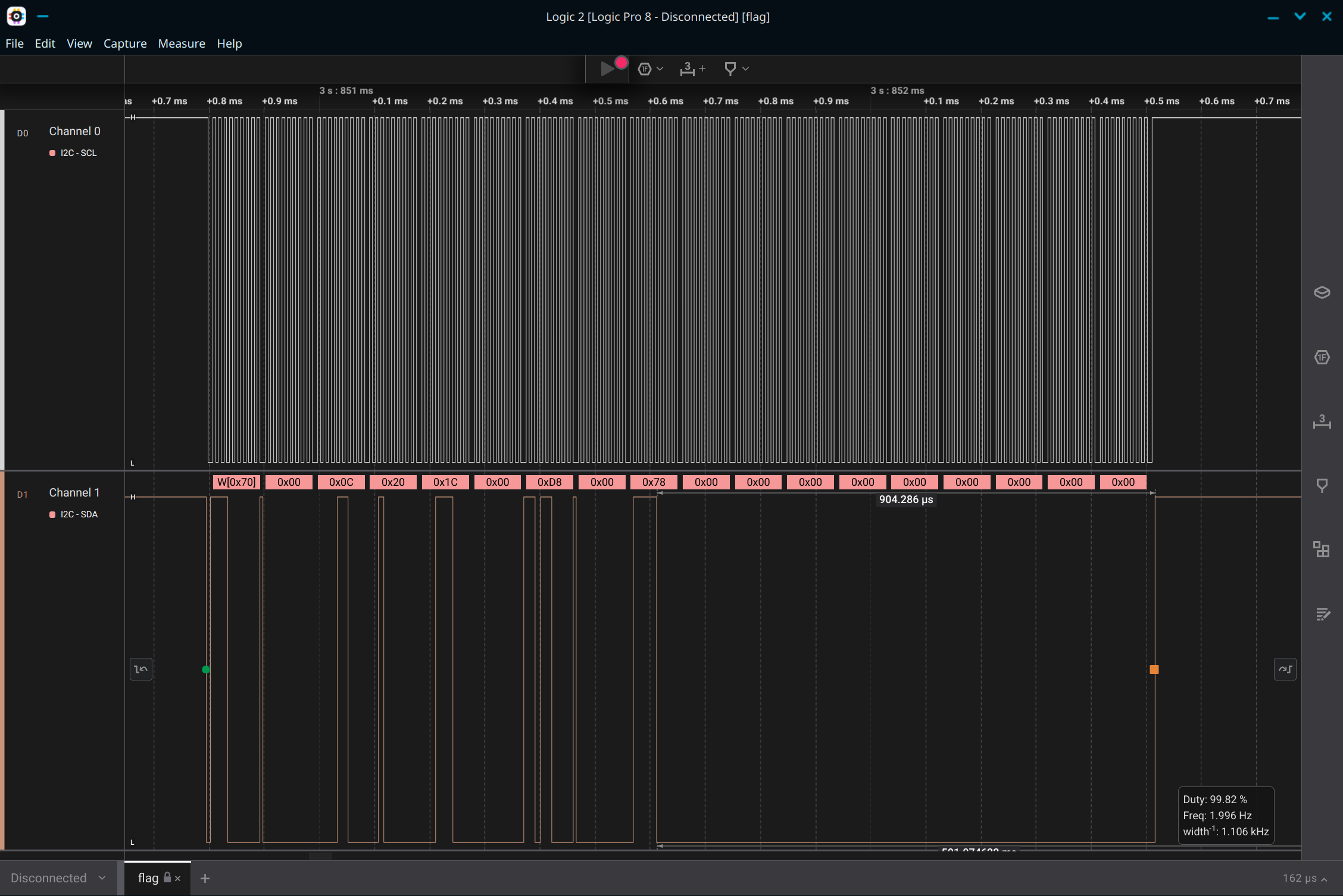

and down to represent 1s and 0s). If you hover on the number above it or zoom
in, you can see the bytes of data:
If you look at the datasheet
https://cdn-shop.adafruit.com/datasheets/2153datasheet.pdf for the display
(linked on the Adafruit product page), you'll see that there are 14 segments on
each digit, and each segment has its own associated letter. If you look it up,
you'll find that this kind of segment display is typically controlled by setting
a bit corresponding to that segment to 1 to turn it on (example https://www.jame
co.com/Jameco/workshop/TechTip/working-with-seven-segment-displays.html).
Looking at the source code for the libraries referenced in the program further
confirms this (LED backpack https://github.com/adafruit/Adafruit_LED_Backpack/bl
ob/master/Adafruit_LEDBackpack.cpp#L337 and I2C https://github.com/adafruit/Adaf
ruit_BusIO/blob/master/Adafruit_I2CDevice.cpp#L102). In the I2C library, you'll
also find the corresponding binary encodings of each character in the
alphafonttable array. You can use this array to figure out which bit goes to
which segment (hint: it's alphabetical).
A: 0000000000000001
B: 0000000000000010
C: 0000000000000100
D: 0000000000001000
E: 0000000000010000
F: 0000000000100000
G1: 0000000001000000
G2: 0000000010000000
H: 0000000100000000
J: 0000001000000000
K: 0000010000000000
L: 0000100000000000
M: 0001000000000000
N: 0010000000000000
DP: 0100000000000000
Looking back at the data, you can see that each I2C communication sends 18 bytes
of data. The first two bytes are consistent with each communication and are
related to the I2C protocol itself. The last sixteen bytes are the actual data
we care about. You'll notice that only eight of those bytes ever have any data
besides 0x00- that's because our display only has four digits (two bytes of data
each), but the library supports larger displays.
Using the segment to bit conversion table, we can reverse the data from the sal
file to determine what character was displayed on the screen. You can do this by
hand, or write a script to do it for you (see solve.py
https://github.com/BYU-CSA/BYUCTF-2025/blob/main/misc/alpha/writeup/solve.py).
Flag - byuctf{4r3n7_h4rdw4r3_pr070c0l5_c00l?}
────────────────────────────────────────────────────────────────────────────────
--[ Full Exploit Script ]--
Source: misc/alpha/writeup/alpha.ino
https://github.com/BYU-CSA/BYUCTF-2025/blob/main/misc/alpha/writeup/alpha.ino
-- cpp --
#include <Wire.h>
#include <Adafruit_GFX.h>
#include "Adafruit_LEDBackpack.h"
Adafruit_AlphaNum4 alpha4 = Adafruit_AlphaNum4();
String flag = "byuctf{4r3n7_h4rdw4r3_pr070c0l5_c00l?}";
void setup() {
Serial.begin(9600);
alpha4.begin(0x70);
alpha4.writeDigitRaw(0, 0x0);
alpha4.writeDigitRaw(1, 0x0);
alpha4.writeDigitRaw(2, 0x0);
alpha4.writeDigitRaw(3, 0x0);
alpha4.writeDisplay();
}
void loop() {
delay(1000);
for (uint8_t i = 0; i < (flag.length() - 3); i++) {
alpha4.writeDigitAscii(0, flag[i]);
alpha4.writeDigitAscii(1, flag[i+1]);
alpha4.writeDigitAscii(2, flag[i+2]);
alpha4.writeDigitAscii(3, flag[i+3]);
alpha4.writeDisplay();
delay(500);
}
}
────────────────────────────────────────────────────────────────────────────────
Source: misc/alpha/writeup/solve.py
https://github.com/BYU-CSA/BYUCTF-2025/blob/main/misc/alpha/writeup/solve.py
-- python --
bytes = [
0x78, 0x20,
0x0c, 0x20,
0x1c, 0x00,
0xd8, 0x00,
0x78, 0x00,
0x71, 0x00,
0x49, 0x09,
0xE6, 0x00,
0x50, 0x00,
0x8F, 0x00,
0x50, 0x10,
0x07, 0x00,
0x08, 0x00,
0x70, 0x10,
0xE6, 0x00,
0x50, 0x00,
0x8E, 0x08,
0x14, 0x28,
0xE6, 0x00,
0x50, 0x00,
0x8F, 0x00,
0X08, 0X00,
0X70, 0X01,
0X50, 0X00,
0X3F, 0X0C,
0X07, 0X00,
0X3F, 0X0C,
0XD8, 0X00,
0X3F, 0X0C,
0X30, 0X00,
0X69, 0X20,
0X08, 0X00,
0XD8, 0X00,
0X3F, 0X0C,
0X3F, 0X0C,
0X30, 0X00,
0X83, 0X10,
0X89, 0X24,
]
segments = {
'A': 0b0000000000000001,
'B': 0b0000000000000010,
'C': 0b0000000000000100,
'D': 0b0000000000001000,
'E': 0b0000000000010000,
'F': 0b0000000000100000,
'G1': 0b0000000001000000,
'G2': 0b0000000010000000,
'H': 0b0000000100000000,
'J': 0b0000001000000000,
'K': 0b0000010000000000,
'L': 0b0000100000000000,
'M': 0b0001000000000000,
'N': 0b0010000000000000,
'DP': 0b0100000000000000,
}
def print_digit(A, B, C, D, E, F, G1, G2, H, J, K, L, M, N, DP):
print(' ___ ') if A else print(' ')
print('|', end='') if F else print(' ', end='')
print('\\', end='') if H else print(' ', end='')
print('|', end='') if J else print(' ', end='')
print('/', end='') if K else print(' ', end='')
print('|') if B else print(' ')
print(' _', end='') if G1 else print(' ', end='')
print('__ ') if G2 else print(' ')
print('|', end='') if E else print(' ', end='')
print('/', end='') if L else print(' ', end='')
print('|', end='') if M else print(' ', end='')
print('\\', end='') if N else print(' ', end='')
print('|') if C else print(' ')
print(' ___ ') if D else print(' ')
for i in range(0, len(bytes), 2):
digit = (bytes[i + 1] << 8) + bytes[i]
matching_segments = {'A': False, 'B': False, 'C': False, 'D': False, 'E': False, 'F': False, 'G1': False, 'G2': False, 'H': False, 'J': False, 'K': False, 'L': False, 'M': False, 'N': False, 'DP': False}
for segment, mask in segments.items():
if digit & mask:
matching_segments[segment] = True
print()
print(int(i/2)+1)
print('#'*8)
print_digit(**matching_segments)
print('#'*8)
────────────────────────────────────────────────────────────────────────────────
