│ Category: Reverse Engineering
│ Author: Imattas aka Zemi
│ Flag: byuctf{android_piece_0f_c4ke}
│ Source Path: rev/baby_android_1
────────────────────────────────────────────────────────────────────────────────
--[ Challenge Description ]--
-- text --
If you've never reverse engineered an Android application, now is the time!! Get to it, already!! Learn how they work!!
[baby-android-1.apk]
────────────────────────────────────────────────────────────────────────────────
--[ Provided Materials ]--
- Repository folder
https://github.com/BYU-CSA/BYUCTF-2025/tree/main/rev/baby_android_1
- rev/babyandroid1/README.md
https://github.com/BYU-CSA/BYUCTF-2025/blob/main/rev/baby_android_1/README.md
- rev/babyandroid1/baby-android-1.apk https://github.com/BYU-CSA/BYUCTF-2025/blo
b/main/rev/baby_android_1/baby-android-1.apk
- rev/babyandroid1/writeup/image-1.png https://github.com/BYU-CSA/BYUCTF-2025/bl
ob/main/rev/baby_android_1/writeup/image-1.png
- rev/babyandroid1/writeup/image-2.png https://github.com/BYU-CSA/BYUCTF-2025/bl
ob/main/rev/baby_android_1/writeup/image-2.png
- rev/babyandroid1/writeup/image-3.png https://github.com/BYU-CSA/BYUCTF-2025/bl
ob/main/rev/baby_android_1/writeup/image-3.png
────────────────────────────────────────────────────────────────────────────────
--[ Recon / Initial Analysis ]--
This page imports the BYUCTF 2025 source material for the Reverse Engineering
challenge Baby Android 1. The prompt is kept separate from the solve notes, and
upstream artifacts are linked so the challenge can be replayed from the original
repository.
────────────────────────────────────────────────────────────────────────────────
--[ Vulnerability / Observation ]--
The useful observation comes from the imported solve notes below. I kept the
original technical path intact while normalizing the page metadata, challenge
grouping, and author attribution for the Volume 2 writeup archive.
────────────────────────────────────────────────────────────────────────────────
--[ Exploitation / Solution ]--
Source: rev/babyandroid1/README.md
https://github.com/BYU-CSA/BYUCTF-2025/blob/main/rev/baby_android_1/README.md
TL;DR the functions in the Java decompilation just clear the main activity,
which is obfuscated to hide the flag. You can either track the coordinates
yourself, or do what I did and throw it in Android Studio or something else that
can display the original XML for you.
Start by opening up jadx to poke around the APK. The only code function in our
MainActivity is this:
-- java --
public class MainActivity extends AppCompatActivity {
@Override // androidx.fragment.app.FragmentActivity, androidx.activity.ComponentActivity, androidx.core.app.ComponentActivity, android.app.Activity
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
Utilities util = new Utilities(this);
util.cleanUp();
TextView homeText = (TextView) findViewById(R.id.homeText);
homeText.setText("Too slow!!");
}
}
It sets up the context, and then runs cleanUp() from a Utilities class. This
function just takes a lot of elements and performs this operation on them:
-- java --
TextView flag = (TextView) this.activity.findViewById(R.id.flagPart1);
flag.setText("");
So it's grabbing parts of the flag and setting them to ''. This probably means
that the flag is stored in those values initially and unset so we can't get it
by running the app. Unless we set a breakpoint or something but idk how to do
that. I have all kinds of ideas of how to solve, let's see what I end up on.
Starting to profile, we can use the R class to find all the flag parts.
-- java --
public static final class id {
public static int flagPart1 = 0x7f0800c2;
public static int flagPart10 = 0x7f0800c3;
public static int flagPart11 = 0x7f0800c4;
public static int flagPart12 = 0x7f0800c5;
public static int flagPart13 = 0x7f0800c6;
public static int flagPart14 = 0x7f0800c7;
public static int flagPart15 = 0x7f0800c8;
public static int flagPart16 = 0x7f0800c9;
public static int flagPart17 = 0x7f0800ca;
public static int flagPart18 = 0x7f0800cb;
public static int flagPart19 = 0x7f0800cc;
public static int flagPart2 = 0x7f0800cd;
public static int flagPart20 = 0x7f0800ce;
public static int flagPart21 = 0x7f0800cf;
public static int flagPart22 = 0x7f0800d0;
public static int flagPart23 = 0x7f0800d1;
public static int flagPart24 = 0x7f0800d2;
public static int flagPart25 = 0x7f0800d3;
public static int flagPart26 = 0x7f0800d4;
public static int flagPart27 = 0x7f0800d5;
public static int flagPart28 = 0x7f0800d6;
public static int flagPart3 = 0x7f0800d7;
public static int flagPart4 = 0x7f0800d8;
public static int flagPart5 = 0x7f0800d9;
public static int flagPart6 = 0x7f0800da;
public static int flagPart7 = 0x7f0800db;
public static int flagPart8 = 0x7f0800dc;
public static int flagPart9 = 0x7f0800dd;
public static int homeText = 0x7f0800f1;
Those can then be tracked to the activity_main.xml file, which is what is loaded
onto the screen when the program first runs, which makes sense. However, the
mapping of the flag parts doesn't coincide with the ordering they would actually
be in. For example, flagPart1 is actually the } at the end of the flag...
-- xml --
<TextView
android:id="@+id/flagPart1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_marginBottom="420dp"
android:text="}"
android:layout_marginEnd="216dp"
app:layout_constraintBottom_toBottomOf="parent"
app:layout_constraintEnd_toEndOf="parent"/>

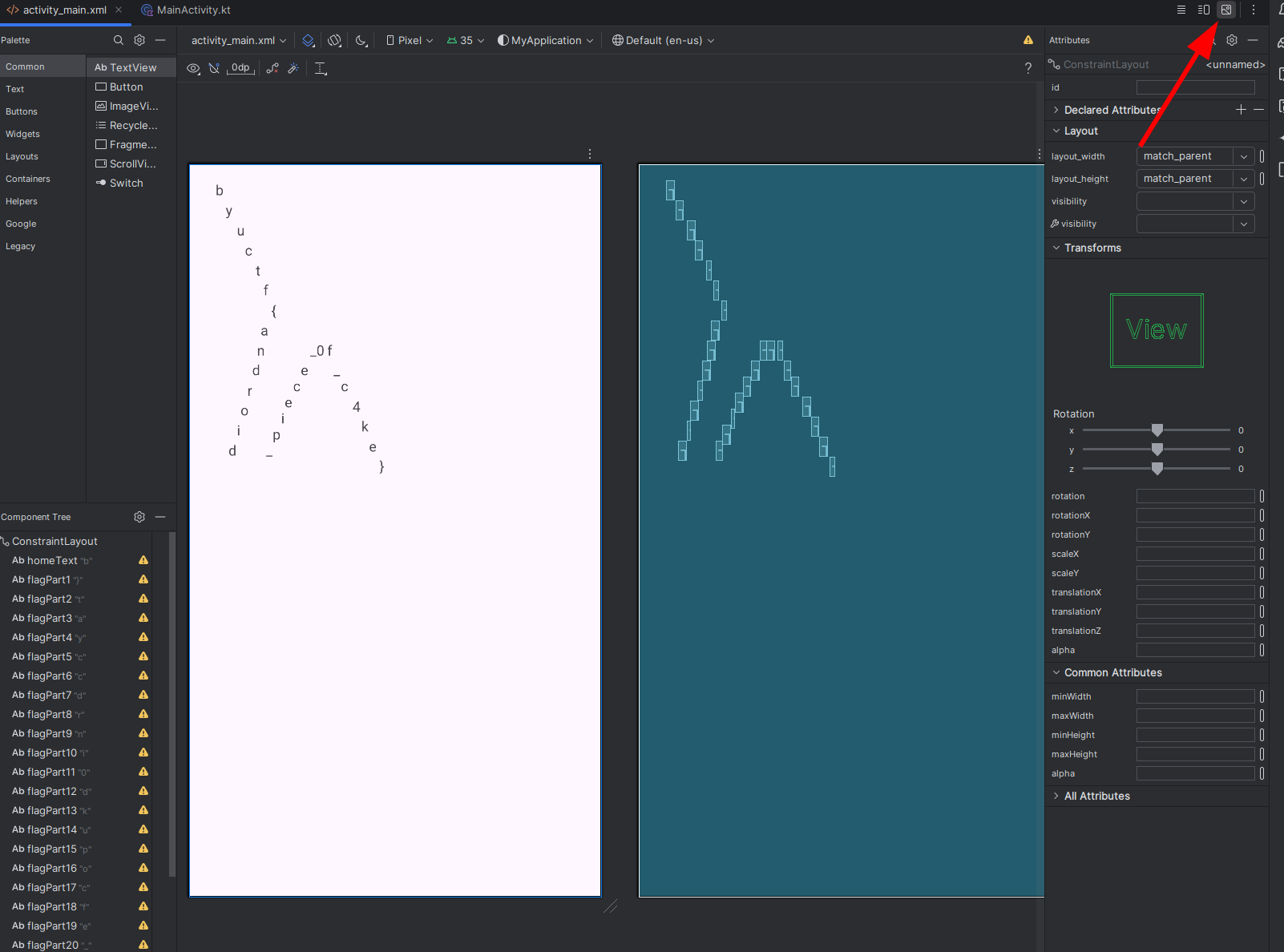

BUT we can just take that xml file and render it, which solves that issue.

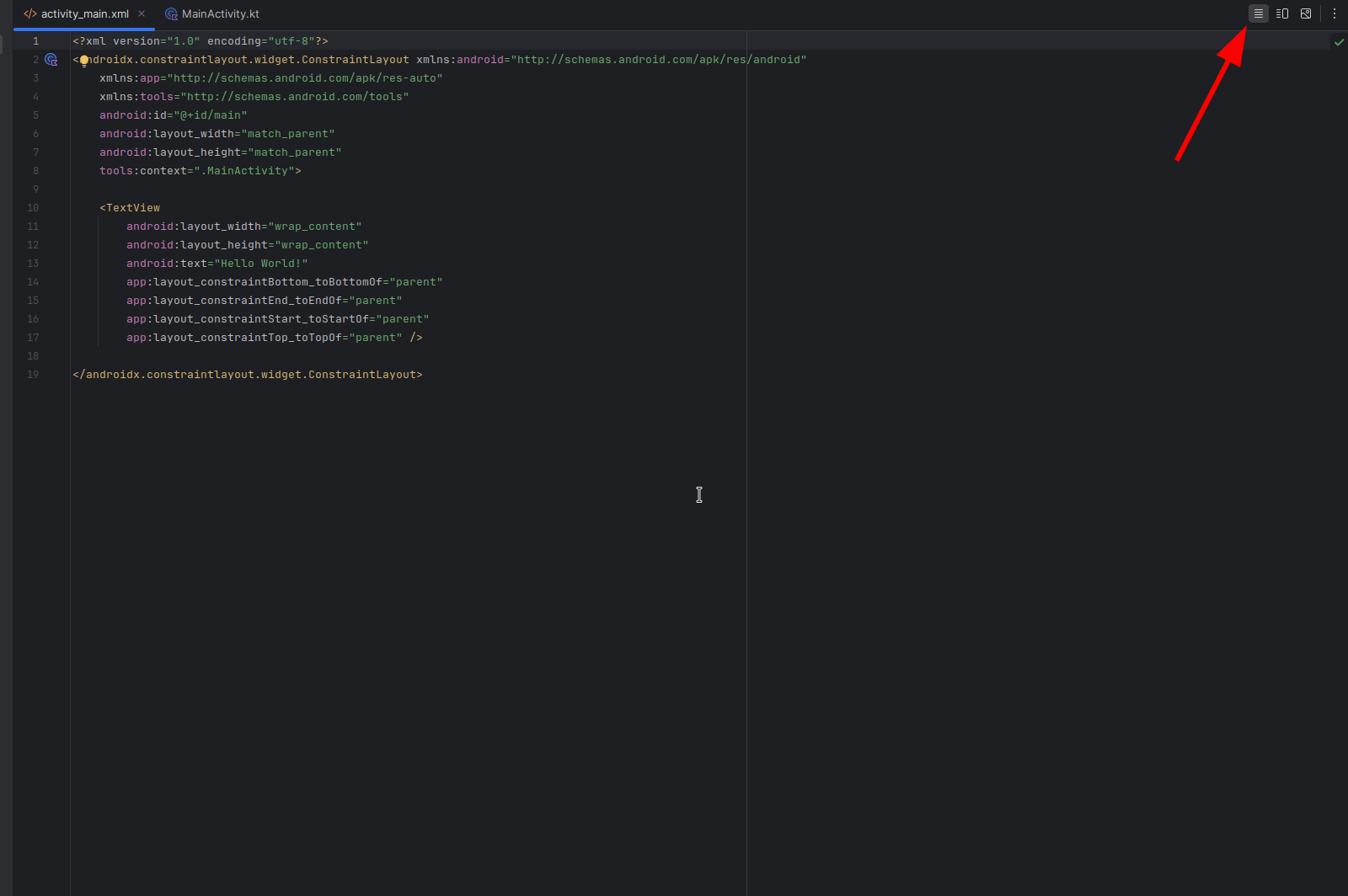

I ended up solving this challenges involved setting up Android Studio
https://developer.android.com/studio. Open a new project, and we'll use this to

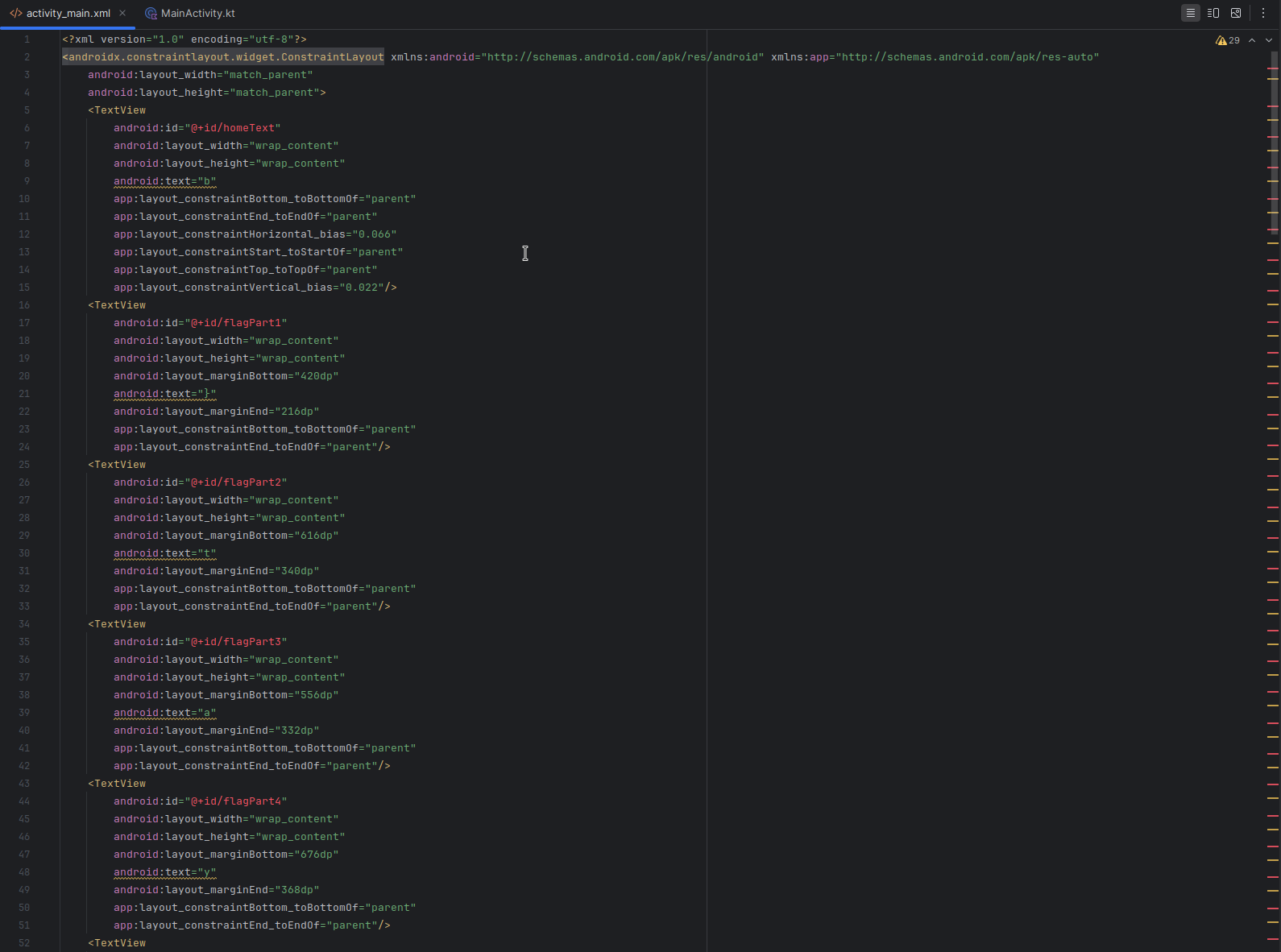

render the page. Once the project loads, you can go into the activity_main.xml
file, replace all the contents, and then render it.
Then you have the flag! Nice and simple :)
Flag - byuctf{android_piece_0f_c4ke}
────────────────────────────────────────────────────────────────────────────────
--[ Full Exploit Script ]--
No standalone exploit script was present in the selected source material.
────────────────────────────────────────────────────────────────────────────────
--[ Key Takeaways ]--
- The BYUCTF 2025 challenge material is preserved with local archive formatting.
- The page author is normalized to Imattas aka Zemi.
- The source repository remains linked for handouts, services, and solve
artifacts.
