│ Category: Reverse Engineering
│ Author: Imattas aka Zemi
│ Flag: byuctf{j0mp1n6_thr0ugh_4ndr01d_c0d3_styl3s_28f6}
│ Source Path: rev/back_and_forth
────────────────────────────────────────────────────────────────────────────────
--[ Challenge Description ]--
-- text --
### Description
Obfuscation is for chumps
- [bk_n_forth.apk](https://github.com/BYU-CSA/BYUCTF-2026/blob/main/rev/back_and_forth/bk_n_forth.apk)
────────────────────────────────────────────────────────────────────────────────
--[ Provided Materials ]--
- Repository folder
https://github.com/BYU-CSA/BYUCTF-2026/tree/main/rev/back_and_forth
- rev/backandforth/README.md
https://github.com/BYU-CSA/BYUCTF-2026/blob/main/rev/back_and_forth/README.md
- rev/backandforth/bknforth.apk https://github.com/BYU-CSA/BYUCTF-2026/blob/main
/rev/back_and_forth/bk_n_forth.apk
- rev/backandforth/brute.py
https://github.com/BYU-CSA/BYUCTF-2026/blob/main/rev/back_and_forth/brute.py
- rev/backandforth/gen_bytes.cpp https://github.com/BYU-CSA/BYUCTF-2026/blob/mai
n/rev/back_and_forth/gen_bytes.cpp
- rev/backandforth/Main.java
https://github.com/BYU-CSA/BYUCTF-2026/blob/main/rev/back_and_forth/Main.java
────────────────────────────────────────────────────────────────────────────────
--[ Recon / Initial Analysis ]--
This page imports the BYUCTF 2026 source material for the Reverse Engineering
challenge Back and Forth. The prompt is kept separate from the solve notes, and
upstream artifacts are linked so the challenge can be replayed from the original
repository.
────────────────────────────────────────────────────────────────────────────────
--[ Vulnerability / Observation ]--
The useful observation comes from the imported solve notes below. I kept the
original technical path intact while normalizing the page metadata, challenge
grouping, and author attribution for the Volume 2 writeup archive.
────────────────────────────────────────────────────────────────────────────────
--[ Exploitation / Solution ]--
Source: rev/backandforth/README.md
https://github.com/BYU-CSA/BYUCTF-2026/blob/main/rev/back_and_forth/README.md
Starting off, you can run the app to interact with it! I used the Android Studio
suite of tools, which will let you spin up an emulator and then install the app

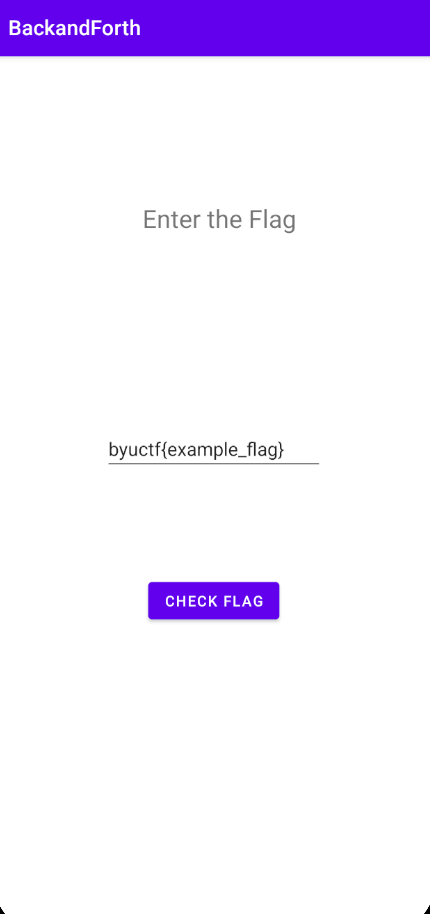

using adb, then you can see it! You get this nice window and then you can try
submitting flags, which will give an error message on screen.
Throwing the app open in JADX, our MainActivity function has some basic details
in it that help us track down the check. First, there's a native library with
the functions check1 and finalize. Then we have check2 in the Java and the main
checkFlag function, which loads some wasm for check3Async. The function is
below, then I'll talk about all the parts:
-- java --
private void checkFlag(String flag, final Consumer<Boolean> callback) {
WasmRunner runner = new WasmRunner();
for (int i = 0; i < this.underscores.length; i++) { // **************_*******_*******_****_******_*****
if ((Byte.toUnsignedInt((byte) (~flag.charAt(this.underscores[i]))) ^ 160) != 0) {
callback.accept(false);
return;
}
}
int i2 = R.string.s;
if (!flag.startsWith(getString(i2))) { // byuctf{*******_*******_*******_****_******_*****
callback.accept(false);
return;
}
if (!check1(flag)) {
callback.accept(false);
return;
}
if (!check2(flag)) { // byuctf{*******_*******_4ndr01d_****_******_*****
callback.accept(false);
} else {
if (!finalize(flag)) {
callback.accept(false);
return;
}
ListenableFuture<Boolean> checkFuture = runner.check3Async(this, flag);
Executor mainExecutor = ContextCompat.getMainExecutor(this);
Futures.addCallback(checkFuture, new FutureCallback<Boolean>() { // from class: com.example.backandforth.MainActivity.1
@Override // com.google.common.util.concurrent.FutureCallback
public void onSuccess(Boolean result) {
callback.accept(result);
}
@Override // com.google.common.util.concurrent.FutureCallback
public void onFailure(Throwable t) {
callback.accept(false);
}
}, mainExecutor);
}
}
So I'll cover each of these checks in the order that I think it makes sense to
(not chronologically, probably in terms of simplicity). There are more than just
4, but idk how many at the time I'm writing this, we'll see :)
> underscores
It just checks that certain indices are underscores, nice.
> flag.startsWith
This one uses a string resource to check that the flag starts with a certain
value. This value is probably byuctf{, BUT you can track it down by finding the
string s in the resources section in jadx
(resources.arsc/res/values/strings.xml). You can search something like <string
name="s">, which will bring you right to it.
> Check 2
This one uses an embedded sqlite database to pull data, comparing it against the
set of bytes from the database. You can find that database inside the Resources
section of the apk in jadx, specifically Resources/assets/mydb.sqlite. Now, you
can pull it out like a good person and read it using the sqlite cli, but you can
also just strings it and you'll find 4ndr01d and can then populate that into the
flag. JADX will also show you the strings in the GUI.
> Check 1
This is our first native code check and a weird one. It's designed to help you
with the flag but it's a SHA256 hash but only checking every other character of
the hash. Theoretically, this would add verification of the finished flag. You
can extract the native code from the Resources/lib/*/libbackandforth.so (using
whichever architecture you like). Then the functions you care about will have a
prefix that lets Java find and use them, specifically one that matches the
namespace of the application. For check 1, this is
Java_com_example_backandforth_MainActivity_check1.
Note: I was wrong about this. I wrote the writeup as I solved it and made
several mistakes. I'll get into this part much later
-- c++ --
uint64_t Java_com_example_backandforth_MainActivity_check1(_jstring* arg1, int64_t arg2, uint8_t* arg3)
> Finalize
This is another native function, and it does two separate checks. It can be
found in Java_com_example_backandforth_MainActivity_finalize in the same
library. Both of these checks are the reason for the challenge's original
creation: you can have Java call C++ and then have that C++ go back and call
Java functions, which I thought was really cool.
To call Java functions, C++ needs to load the class (like the java code class,
.class I think), then the object, then the method on the object, then it can
call that method. So the program loads the class from self (basically), the
loads the class inside of it (EzFlagCheck), then finds the function gibFleg. In
Java, this function just returns that string of nofleg.... The intent of this
was to just check the end of the string against it for the last 4 bytes, but it
was completely broken (see below). For the sake of the writeup, I will assume it
was correct, in which case the last 5 bytes would have been 28f6}.
-- c++ --
uint64_t Java_com_example_backandforth_MainActivity_finalize(_jstring* class, int64_t arg2, uint8_t* arg3)
...
_jmethodID* object = _JNIEnv::FindClass(class, "com/example/backandforth/EzFlagCheck")
int64_t rax_10 = _JNIEnv::GetStaticMethodID(class, object, "gibFleg")
if (rax_10 != 0)
// nofleg{356df2f2de7e8c9a1b2d3e4f5692d2b3c4a6728f6}
uint8_t* fakeFlag =
_JNIEnv::CallStaticObjectMethod(class, object, rax_10)
if (fakeFlag != 0)
if (strcmp(_JNIEnv::GetStringUTFChars(class, fakeFlag) + 0x2b,
&arg1_cstring[0x2b]) != 0)
This was originally a postscript to this, but it needs to go here instead so I
can point out how this challenge went wrong... This challenge actually was
broken... I guess I did math wrong or changed something at some point and the
"fake flag" ended up being one character longer than the real flag, meaning that
although that check was set up to check the last 4 characters of the flag + '}',
it didn't actually do so and just failed and accepted whatever... which was a
pretty big oopsie. The actual logic is doing a check, and I thought that I
understood what was going on but it was late at night and I did not. strcmp
returns 0 if the strings are identical, SO by checking if != 0, it's only
continuing if they are not the same, which they never will be bc they are
different lengths.
The second part of finalize is, in my opinion, the coolest. I'll lead with the
code and explain after:
-- c++ --
uint64_t Java_com_example_backandforth_MainActivity_finalize(_jstring* class, int64_t arg2, uint8_t* arg3)
...
if (fakeFlag != 0)
if (strcmp(_JNIEnv::GetStringUTFChars(class, fakeFlag) + 0x2b,
&arg1_cstring[0x2b]) != 0)
uint64_t mt_state[0x27e]
seed_MT_state(&mt_state, 0x1337)
int64_t method =
_JNIEnv::GetStaticMethodID(class, object, "gen")
if (method != 0)
int64_t stored
__builtin_memcpy(dest: &stored,
src: "\x66\x0b\x23\x01\x8a\xe5\x3d\x00\xb5\xb4\x39\x01\x"
"7b\x9b\x55\x01\x2e\x74\xdb\x04\x4e\x9c\x26\x00",
count: 0x18)
int32_t i = 0
while (true)
if (i s>= 6)
var_1431 = 1
int32_t var_1464_7 = 1
break
if (divu.dp.d(
0:(_JNIEnv::CallStaticIntMethod(class,
object, method,
zx.q(gen_number(&mt_state)))),
*(&stored + (sx.q(i) << 2)))
!= zx.d(arg1_cstring[sx.q(i + 0x24)]))
var_1431 = 0
int32_t var_1464_6 = 1
break
i += 1
I populated both seed_MT_state and gen_number myself as function names, as those
are standard library functions (from std::mt19937, though I'm not using their
names here which are both rng). Those can be determined from some crypto
constants that can be found in each of those functions for MT19937 seeding and
number generation.
The program generates a random number, then uses that to reach back up into the
Java and call the gen function with that as an argument. What is the gen
function, then? Also in EzFlagCheck, its code is below:
-- java --
public static int gen(int seedVal) {
Random random = new Random(seedVal);
return random.nextInt();
}
So it takes our MT19937 random number, then uses that to seed Java's random
number generator and generate a subsequent random number, passing that back to
the native code. Once there, the program does a division operation as new_rand /
stored[i], where stored is a list of int values (as it's being indexed in
multiples of 4, shown by the i << 2). So each of these final random numbers,
when given back to C++, will divide by those stored numbers to result in our
flag characters.
To solve this part, I recreated the logic in my own script(s), included with
this as gen_bytes.cpp https://github.com/BYU-CSA/BYUCTF-2026/blob/main/rev/back_
and_forth/gen_bytes.cpp and Main.java
https://github.com/BYU-CSA/BYUCTF-2026/blob/main/rev/back_and_forth/Main.java. I
ran the generation in C++, then did the generation in Java, then actually
processed and printed that back in C++. I did run into some trouble with integer
conversions between the two so this took longer than I thought it would, but the
part of the flag is styl3s, meaning we have:
byuctf{*******_*******_4ndr01d_****_styl3s_28f6}.
So... 3 more parts of the flag. Where are they? (this is genuinely me asking
myself this btw as I solve it again and forgot how I structured it)
One of them is hiding down at the bottom of finalize(). After the loop for our
check of the last two parts, we have this code block:
-- c++ --
uint64_t Java_com_example_backandforth_MainActivity_finalize(_jstring* class, int64_t arg2, uint8_t* arg3)
...
char var_1465_1 = 0
int32_t var_146c_1 = 0
while (true)
if (var_146c_1 s>= 6)
_jmethodID* object = _JNIEnv::FindClass(class)
...
var_1465_1 += arg1_cstring[sx.q(var_146c_1 + 0xf)]
if (zx.d(var_1465_1) != zx.d(*(fifo + (sx.q(var_146c_1) << 1))))
var_1431 = 0
int32_t var_1464_1 = 1
break
This is another 6-character piece, as shown by var_146c_1 which triggers the
check above once it reaches 6. It just starts adding characters together and
comparing them to the saved byte values. This truncates the high bits, but
because it's a value <= 0x7f each time, that's fine. That's easy enough to rev
with python, and it gives us that part of the flag: thr0ugh
-- python --
fifo = b't\x00\xdc\x00N\x00~\x00\xf3\x00Z\x00\xc2\x00'
sum = 0
for i in range(7):
next_sum = sum + fifo[i*2]
real = chr(((fifo[i*2] | (next_sum & 0xff00)) - sum)&0xff)
print(real)
sum += ord(real)
Just two more parts to go: byuctf{*******_thr0ugh_4ndr01d_****_styl3s_28f6}.
> wasm
The next part of the flag check is in the wasm. This is a little funky bc I
think I had to wrap the wasm in js, which I then had to wrap in Java. This is
all in WasmRunner in the program. The Javascript section is found through string
references, as seen earlier: String jsCode = context.getString(R.string.async) +
context.getString(R.string.consumeNamedData) +
context.getString(R.string.bindgen) + context.getString(R.string.flStr) +
escapedFlag + "';" + context.getString(R.string.runcheck) + "})()";
-- js --
(async () => { const wasm = await android.consumeNamedDataAsArrayBuffer('wasm-1'); await wasm_bindgen(wasm); const flagString = 'ESCAPED_FLAG'; return wasm_bindgen.check3(flagString).toString();})()
So it's loading the data via android.consumeNamedDataAsArrayBuffer to load the
wasm with wasm_bindgen, then running a function from that. Simple enough? I was
hunting for the actual wasm in the program, and I figured it would be in the
assets folder where we found the .sqlite file earlier (I was right), but I
wanted to track it down to be sure. I figured the below code was actually
processing the wasm bc of its copying data code, so I just found the reference
to the string it calls bg (which is pointing to the string bg), which is the
name of a file in the assets folder, so bingo.
-- java --
ListenableFuture<byte[]> wasmLoadFuture = Futures.submit(new Callable<byte[]>() { // from class: com.example.backandforth.WasmRunner.1
@Override // java.util.concurrent.Callable
public byte[] call() throws Exception {
InputStream is = context.getAssets().open(context.getString(R.string.bg));
try {
byte[] buffer = new byte[is.available()];
is.read(buffer);
if (is != null) {
is.close();
}
return buffer;
} catch (Throwable th) {
if (is != null) {
try {
is.close();
} catch (Throwable th2) {
th.addSuppressed(th2);
}
}
throw th;
}
}
}, this.backgroundExecutor);
Tracking down the wasm itself, wabt has a lot of great tools you can use (like
wasm2wat, wasm2c, and wasm-decompile), but I wanted to try out Ghidra's wasm
decompiler, which worked great! It stores the important wasm in the exports
category of symbols, so I found the check3 function in there. Scrolling through,
it was a total mess. BUT I was able to make out bits and pieces of the logic...
pointer_to_data = *(undefined8 *)(flag + 7); in the program (labelled of course)
is taking a slice of our flag, which I knew to look for because one of the
blocks we were looking for started there. I was able to find the part that was
looping for our 8 characters by following the brackets of the do while loop,
which meant I knew where to narrow dowm my reversing to. The other thing I was
suspicious of was this constant: 0x298727a55bfeb500. It was the only real thing
popping out in the decompilation, so I figured it would be a part of the check.
Especially since our check was 8 bytes, it would make sense that the result
could be stored in a 64-bit integer. AND in the section with that, there is a
return of a value that is set only if a comparison passes, which is a really
good sign. However, I couldn't easily see how the flag trickled down into there.
I was pretty sure that was the check I was looking for, so I decided to ignore
trying to track whatever madness was going on and looked to see if I could find
major type stuff. I found some stuff that looked like left rotation by 6, but
that didn't actually lead anywhere so I went back up to the loop.
I think my fundamental first approach to the setup was off. I started looking to
see if i could parse through some of the library calls made (the unidentified
functions) by the panic messages they came with. The first that came up was
this:
-- c --
iVar9 = unnamed_function_7(&local_70,&DAT_ram_0010053c,&local_40);
if (iVar9 != 0) {
panic(s_a_formatting_trait_implementatio_ram_001005a0,0x56,(int)&local_68 + 7,
&DAT_ram_00100590,&PTR_s_library/alloc/src/fmt.rs_ram_00100000_ram_001005f8);
do {
halt_trap();
} while( true );
This was a formatting trait implementation error on our data, which seems like
function 7 is used to format data, so maybe it's being managed in a weird way.
That is strengthened by this line down below, which had confused me before: if
(9 < uVar21 - 0x30) {. That's a classic check to make sure a printable character
is a digit, but I had thought that the flag was more than digits based off the
fact everything else was a phrase so that didn't make any sense until the format
string came around. Additionally, that is processed here phVar10->magic[0] =
(char)(uVar21 - 0x30); which is a typical way to go from number character to int
in c.
Then this was the line that had caught my eye from the beginning but I didn't
really know what to do with it:
-- c --
uVar21 = (uint)(byte)*pcVar20 << ((ret ^ 0xffffffff) & 7) | uVar21;
Initially, I had seen the 7 and thought of the encoding where you take an 8-bit
encoded value and pack it to 7 bits, so I played around with that i the Python
terminal to no luck. But returning to it now and thinking of the fact that we
had just pretty printed our flag section into something non-flaggy (my guess was
something like {:08b} since we're working in rust), I realized that the byte
pointed to by pcVar20 didn't need to be a full byte. It was likely either a 0 or
1 WHICH MEANT that it was packing our bit over to one of 8 bits in a byte.
Here's the whole packer:
-- c --
do {
if (bVar6 == 2) {
if (counter == pcVar15) goto code_r0x8000200e;
bVar6 = 2;
pcVar19 = counter;
}
else {
if ((bVar6 & 1) == 0) goto code_r0x8000200e;
bVar6 = counter + 1 < (byte *)uVar2;
pcVar19 = pcVar15 + (int)counter * (int)uVar3;
}
counter = counter + 1;
if (pcVar19 == (char *)0x0) goto code_r0x8000200e;
uVar20 = (uint)(byte)*pcVar19 << ((ret ^ 0xffffffff) & 7) | uVar20;
ret = ret + 1;
} while( true );
This took me so long to track down. But when you trace upwards, you can find
that uVar3 = 0x100000008, uVar2 = 0x800000008, which means that our pcVar19 is
actually incrementing by counter * 8, which means it's taking all of the bits in
the same column, if we were to assume it looked like a matrix when all the bits
were stored. Then our uVar2 value is used at the top of the else statement as a
trigger for our breaking out of this, which is that whenever the counter + 1 is
greater than uVar2, it'll set bVar6 to 0, which will break out of the loop the
next time. Since it was taking every 0th bit and placing them all into the same
byte, I guessed that it (I) had arranged them into a sort of matrix and was
transposing it, WHICH would make total sense given there is a byte of only 0's.
I made a quick Python script to test, and it came out to: j0mp1n6_! I could be
done with wasm!!! (Reversing this section took probably 2 hours even though I
was the one who originally wrote it about a year ago)
Current knowledge of the flag: byuctf{j0mp1n6_thr0ugh_4ndr01d_****_styl3s_28f6}
> The last section
Remember how I said I thought it was doing a whole hash check earlier? I was
wrong. The decompliation forgot an argument so I was completely mistaken. Let's
look at the check1 again:
-- c --
uint64_t Java_com_example_backandforth_MainActivity_check1(_jstring* arg1, int64_t arg2, uint8_t* arg3)
void* fsbase
int64_t rax = *(fsbase + 0x28)
int64_t var_b8 = arg2
int64_t rax_1 = _JNIEnv::GetStringUTFChars(arg1, arg3)
SHA256::SHA256()
uint8_t var_80[0x70]
SHA256::update(&var_80, rax_1 + 0x1f)
SHA256::digest()
uint32_t var_d4 = 0
char var_a1
while (true)
if (var_d4 s>= 0x20)
var_a1 = 1
break
void var_a0
if (zx.d(*sub_466390(&var_a0, sx.q(var_d4)))
!= zx.d(*(indexes + sx.q(divs.dp.d(sx.q(var_d4), 2)))))
var_a1 = 0
break
var_d4 += 2
uint32_t rax_3
rax_3.b = var_a1
if (*(fsbase + 0x28) != rax)
__stack_chk_fail()
noreturn
int64_t rax_10
rax_10.b = rax_3.b
return zx.q(rax_10.b)
NOTICE that the hash is actually starting at 0x1f? Well, I missed that the first
time. 0x1f happens to be the location of our one missing chunk. I thought I
needed the hash of the whole object here, but it turns out just the end?
Remember how I said it missed an argument? Here's the assembly of the call to
update():
-- armasm --
00466932 488bb538ffffff mov rsi, qword [rbp-0xc8 {var_d0}]
00466939 4883c61f add rsi, 0x1f
0046693d 488d7d88 lea rdi, [rbp-0x78 {var_80}]
00466941 ba04000000 mov edx, 0x4
00466946 e8151e0700 call SHA256::update
Notice that it's populating edx / arg3? It's only taking the hash of 4 bytes,
which MEANS that we can brute force just those four bytes and finally have our
full flag!! I threw together brute.py
https://github.com/BYU-CSA/BYUCTF-2026/blob/main/rev/back_and_forth/brute.py
pretty quickly and ta-da! We have our last chunk: c0d3.
If you played the challenge, hopefully you enjoyed it (minus mayyyybe the wasm
lol). If you just read the writeup, hopefully you also enjoyed it :) It was a
lot of fun to write
Flag: byuctf{j0mp1n6_thr0ugh_4ndr01d_c0d3_styl3s_28f6}
P.S.: I actually lost all the source code to this challenge when I reimaged my
computer a while ago and was careless.... I really enjoyed writing it tho, and
the goal was to include as many technologies as I could. There were some that I
just couldn't reasonably fit, such as hermes bytecode or native javascript,
since those would have required architecture changes (or the hermes bytecode
could have been executed in C++ as hermes 'shellcode' basically but I didn't
wanna deal with that since I was already doing pretty much the same thing with
wasm). I developed the whole application using Android studio, without AI, and I
wrote the wasm code in Rust then compiled it to wasm, though I don't remember
the toolchain I used for that. All in all, it was cool interacting with how many
different things I could do inside of an Android application.
────────────────────────────────────────────────────────────────────────────────
--[ Full Exploit Script ]--
- rev/backandforth/brute.py
https://github.com/BYU-CSA/BYUCTF-2026/blob/main/rev/back_and_forth/brute.py
- rev/backandforth/gen_bytes.cpp https://github.com/BYU-CSA/BYUCTF-2026/blob/mai
n/rev/back_and_forth/gen_bytes.cpp
- rev/backandforth/Main.java
https://github.com/BYU-CSA/BYUCTF-2026/blob/main/rev/back_and_forth/Main.java
────────────────────────────────────────────────────────────────────────────────
--[ Key Takeaways ]--
- The BYUCTF 2026 challenge material is preserved with local archive formatting.
- The page author is normalized to Imattas aka Zemi.
- The source repository remains linked for handouts, services, and solve
artifacts.
